DSG3000B SERIES

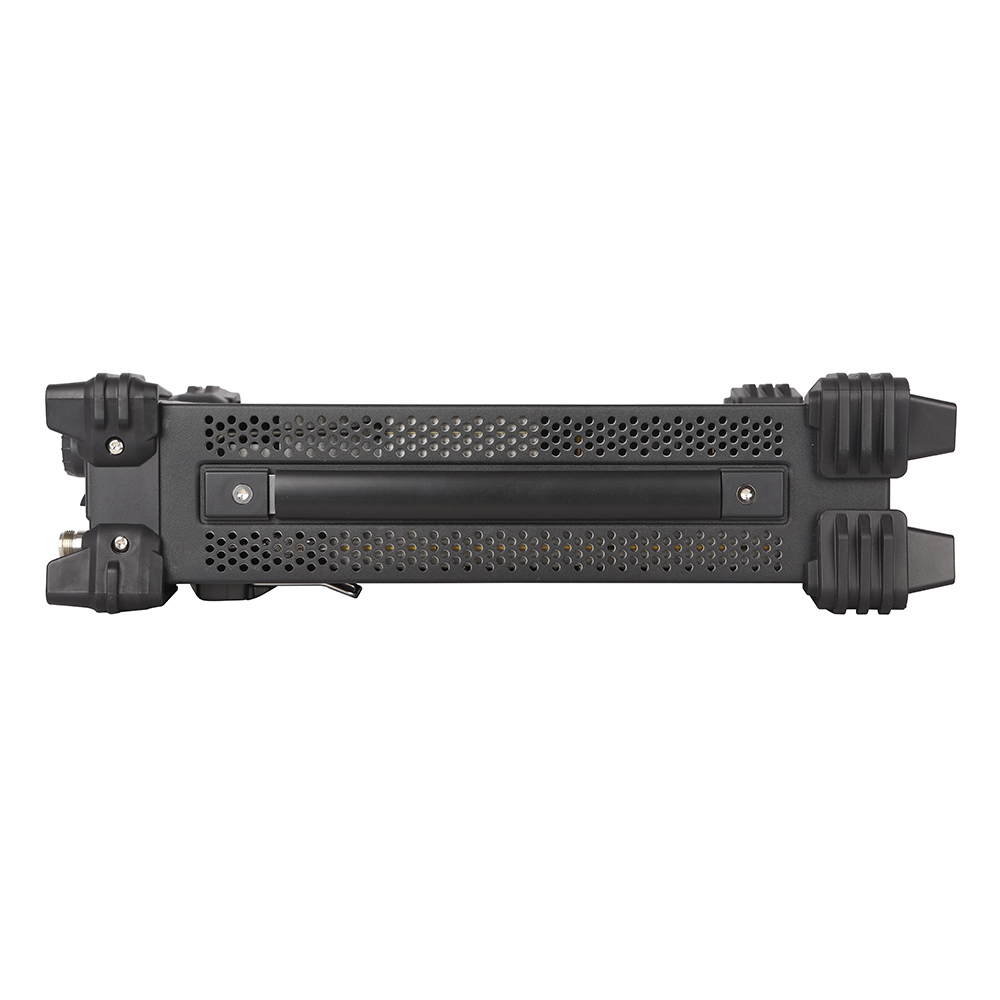

The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analog modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in “IQ”. The DSG3065B has a maximum frequency of 6.5 GHz and the DSG3136B outputs all the way to 13.6 GHz. Featuring a high signal purity with phase noise measuring <-116dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000B RF signal generator has optional pulse modulation and pulse train generation with the DSG3000B-PUG option. The DSG3000 series also has an amplitude accuracy of <0.5dB (typical).

Add Your Heading Text Here

OUR PRODUCTS FEATURES

FEATURES OF DSG3000B SERIES

High Power Signal Generation Capability

The maximum output amplitude is +27dBm,which meets the non-linearity test of the amplifier.

Phase Noise Metric

High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index.

Internal and External IQ Modulation

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform.

MODEL

MAX FREQUENCY

PHASE NOISE

AMPLITUDE ACCURACY

PRICE

DSG3065B

6GHz

<-116 dBc/Hz

<0.5 dB

DSG3065-IQ

6.5GHz

<-116 dBc/Hz

<0.5 dB

DSG3136B

13.6GHz

<-116 dBc/Hz

<0.5 dB

DSG3136B-IQ

13.6GHz

<-116 dBc/Hz

<0.5 dB
